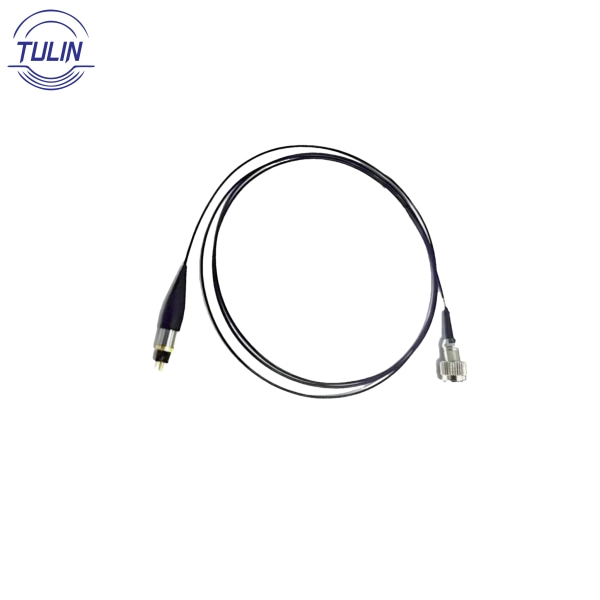

SM Coaxial Package
We provide Single mode coaxial package modules with various wavelength options. Featuring high efficiency and exceptional reliability, these modules have been widely adopted in the market and consistently deliver outstanding performance.
| No. | Product Code | Wavelength (nm) | Output Power(mW) | Operating Current(mA) | Operating Voltage(V) | Core Diameter (μm) | Mode |
| 1 | TL-405-A80440 | 405±5 | 80 | 160 | 5 | 3 | SM |
| 2 | TL-450-A40440 | 450±5 | 40 | 110 | 5.5 | 3.5 | SM |
| 3 | TL-488-A30440 | 488±5 | 30 | 120 | 6.5 | 3.5 | SM |
| 4 | TL-505-A35440 | 505±5 | 35 | 240 | 7 | 3.5 | SM |
| 5 | TL-520-A40440 | 520±5 | 40 | 240 | 6.7 | 3.5 | SM |
| 6 | TL-638-B10440 | 638±5 | 100 | 240 | 3 | 4 | SM |
| 7 | TL-660-A50440 | 660±5 | 50 | 160 | 3 | 4 | SM |
| 8 | TL-685-A20440 | 685±5 | 20 | 100 | 2.5 | 4 | SM |
| 9 | TL-785-A60440 | 785±5 | 60 | 160 | 2.5 | 5 | SM |
| 10 | TL-808-A40440 | 808±5 | 40 | 160 | 2.5 | 5 | SM |
| 11 | TL-830-A70440 | 830±5 | 70 | 180 | 2.5 | 5 | SM |
| 12 | TL-850-A70440 | 850±5 | 70 | 180 | 2.5 | 5 | SM |
| 13 | TL-905-A70440 | 905±5 | 70 | 240 | 2.5 | 5 | SM |
| 14 | TL-940-A70440 | 940±5 | 70 | 240 | 2.5 | 5 | SM |
| 15 | TL-980-A20440 | 980±5 | 20 | 180 | 2.0 | 6.5 | SM |
| 16 | TL-1064-A05440 | 1064±5 | 15 | 120 | 2.0 | 5.5 | SM |
