6xxnm Module

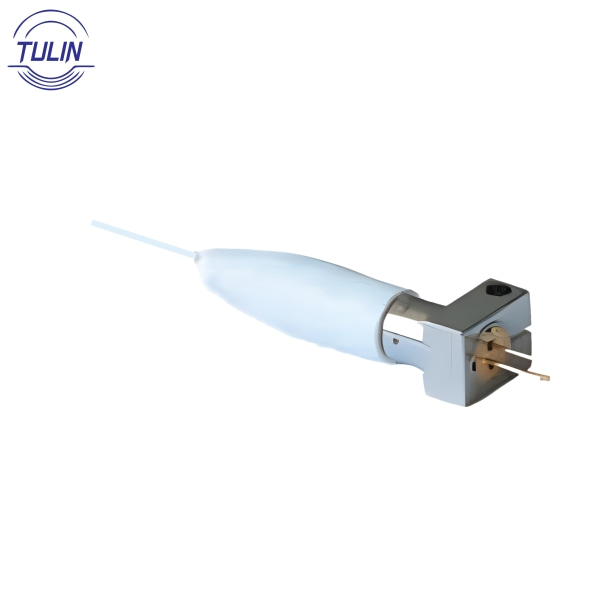

We offer 6xxnm fiber coupled laser diode modules with various power options. With high-efficiency heat conduction and long lifespan, these modules are widely recognized in the market for their reliable performance and exceptional quality.
| No. | Product Code | Wavelength(nm) | Output Power(W) | Operating Current(A) | Operating Voltage(V) | Core Diameter(μm) | Mode |
| 1 | TL-635-C4536E | 635 | 4.5 | 0.9 | 17 | 105 | MM |
| 2 | TL-638-B5036G(Pluggable fiber output) | 638 | 0.5 | 0.9 | 2.3 | 200 | MM |
| 3 | TL-640-00536E | 640 | 5 | 105 | MM | ||
| 4 | TL-640-02036E | 640 | 20 | 1.4 | 48 | 105 | MM |
| 5 | TL-638-02036I | 638 | 20 | ＜2 | ＜45 | 400 | MM |
| 6 | TL-638-04036I | 638 | 40 | ＜3.5 | ＜45 | 400 | MM |
| 7 | TL-638-06036I | 638 | 60 | ＜1.8 | ＜72x2 | 400 | MM |
| 8 | TL-638-10036I | 638 | 100 | ＜2.8 | ＜72x2 | 400 | MM |
| 9 | TL-645-00136E | 645 | 1 | 1.4 | 2.4 | 105 | MM |
| 10 | TL-650-A0536E | 650 | 5mW | 0.03 | 2.6 | 105 | MM |
| 11 | TL-650-A2036E | 650 | 0.02 | 0.15 | 2.6 | 105 | MM |
| 12 | TL-650-B1036E | 650 | 0.1 | 0.2 | 2.6 | 105 | MM |
