878.6nm Module

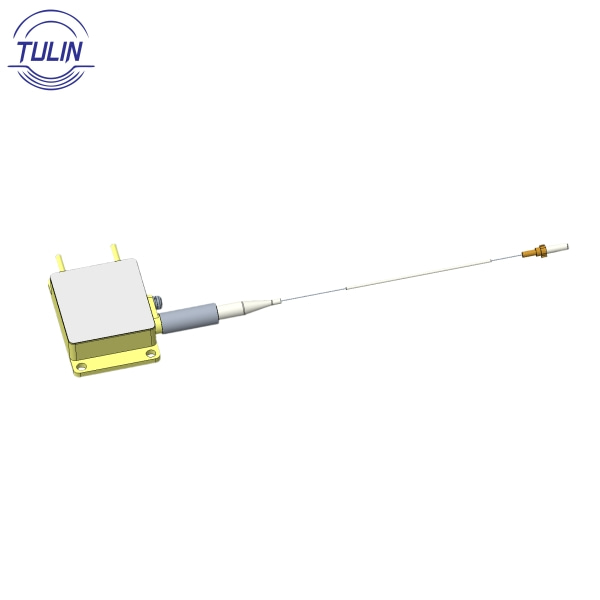

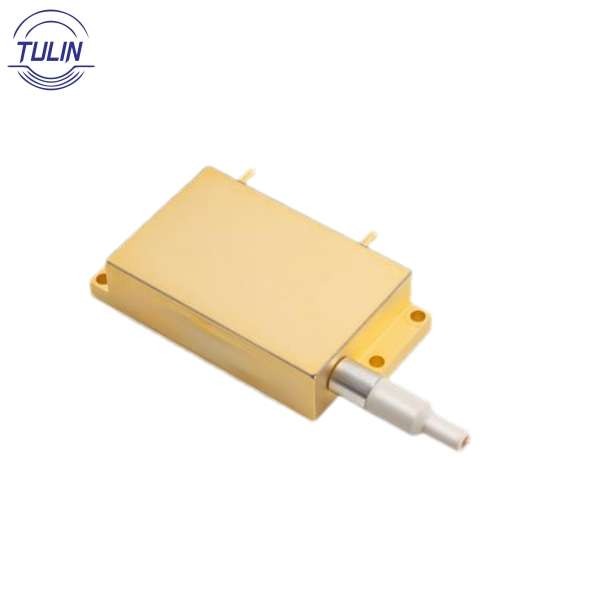

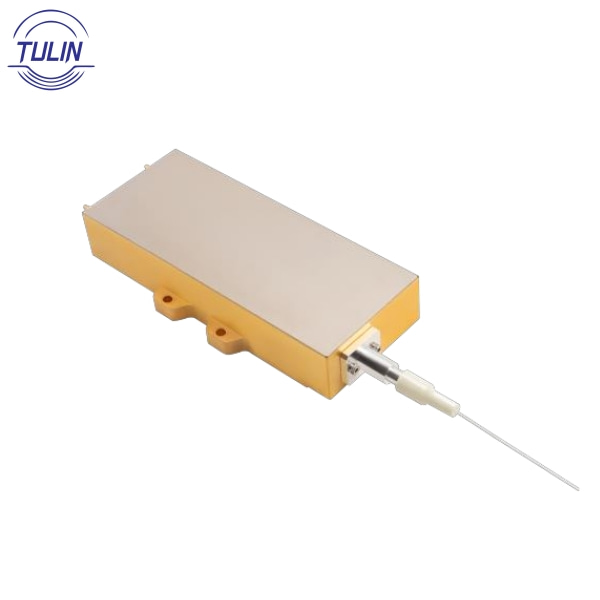

We provide fiber coupled laser diode modules at 878.6nm with various power options. Featuring high brightness, excellent electro-optical conversion, and exceptional reliability, these modules have been widely adopted in the market and consistently deliver outstanding performance.
| No. | Product Code | Wavelength (nm) | Output Power(W) | Operating Current(A) | Operating Voltage(V) | Core Diameter/Cladding Diameter(μm) | Mode |
| 1 | TL-878.6-03036G | 878.6 | 30 | 13 | 5 | 200/220 | MM |
| 2 | TL-878.6-03036H | 878.6 | 30 | 13 | 5 | 220/242 | MM |
| 3 | TL-878.6-03036I | 878.6 | 30 | 13 | 5 | 400/440 | MM |
| 4 | TL-878.6-04036H | 878.6 | 40 | 12 | 7 | 220/242 | MM |
| 5 | TL-878.6-06536E | 878.6 | 65 | 10 | 14.5 | 105/125 | MM |
| 6 | TL-878.6-06536G | 878.6 | 65 | 13 | 9.5 | 200/220 | MM |
| 7 | TL-878.6-06536H | 878.6 | 65 | 13 | 9 | 220/242 | MM |
| 8 | TL-878.6-06536I | 878.6 | 65 | 13 | 9 | 400/440 | MM |
| 9 | TL-878.6-09036I | 878.6 | 90 | 400 | MM | ||
| 10 | TL-878.6-12036E | 878.6 | 120 | 12 | 19.5 | 105/125 | MM |
| 11 | TL-878.6-12036G | 878.6 | 120 | 12 | 19.5 | 200/220 | MM |
| 12 | TL-878.6-12036H | 878.6 | 120 | 12.5 | 19.5 | 220/242 | MM |
| 13 | TL-878.6-12036I | 878.6 | 120 | 12 | 19.5 | 400/440 | MM |
| 14 | TL-878.6-17536E | 878.6 | 175 | 10 | 34.5 | 105/125 | MM |
| 15 | TL-878.6-17536G | 878.6 | 175 | 13 | 28.5 | 200/220 | MM |
| 16 | TL-878.6-17536H | 878.6 | 175 | 12.5 | 28.5 | 220/242 | MM |
| 17 | TL-878.6-17536I | 878.6 | 175 | 12.5 | 25 | 400/440 | MM |
| 18 | TL-878.6-23536G | 878.6 | 235 | 13 | 37.5 | 200 | MM |
| 19 | TL-878.6-30036G | 878.6 | 300 | 13 | 200/220 | MM | |
| 20 | TL-878.6-50036G | 878.6 | 500 | 15 | 200/220 | MM |
