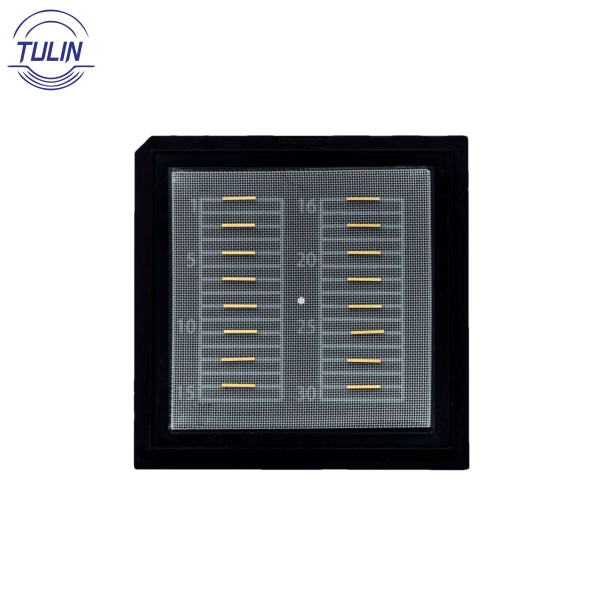

FP&DFB Chip

Short Description:

We provide a range of products in various wavelengths to our customers in the form of bare chips. Known for their high quality, reliability, and excellent conversion efficiency, these products have been widely adopted in the market and consistently deliver outstanding performance.

Wavelength: 638nm~1940nm
Output Power: 0.03W~1200W

CONTACT NOW

Product Details

We provide a range of products in various wavelengths to our customers in the form of single bar diode laser chips. Known for their high quality, reliability, and excellent conversion efficiency, these products have been widely adopted in the market and consistently deliver outstanding performance.

No.	Product Code	Description	Emitter Width (μm)	Output Power(W)	Operating Current(A)	Operating Voltage(V)	Mode
1	TL-638-B50020	638nm chip	55	0.5	0.7	2.2	MM
2	TL-638-001020	638nm chip	110	1	1.5	2.1	MM
3	TL-640-002020	640nm chip	75*2	2	2.35	2.12	CW/QCW
4	TL-650-A40020	650nm chip	3.5	0.04			SFP
5	TL-650-B50020	650nm chip	55.0	0.5	0.7	2.1	MM
6	TL-665-B50020	665nm chip	55	0.5	0.7	2.2	MM
7	TL-665-002020	665nm chip		2	2	2.1	MM
8	TL-690-002020	690nm chip		2	1.6	2.1	MM
9	TL-755-005020	755nm chip	190	5
10	TL-755-008020	755nm chip	190	8			MM
11	TL-755-010021	755nm chip	350	10	9	1.8	MM
12	TL-755-015020	755nm chip	340	15			MM
13	TL-755-018020	755nm chip	400	18			MM
14	TL-755-020020	755nm chip	500	20			MM
15	TL-760-A60030	760nm chip		0.04			DFB
16	TL-765-008020	765nm chip	190	8			MM
17	TL-780-005020	780nm chip	96	5	5	1.8	MM
18	TL-780-006020	780nm chip	150	6	6	1.8	MM
19	TL-780-007020	780nm chip	190	7			MM
20	TL-780-010020	780nm chip	190	10			MM
21	TL-785-002020	785nm chip	100	2			MM
22	TL-785-010020	785nm chip	190	10			MM
23	TL-790-010020	790nm chip	190	10	10	1.8	MM
24	TL-793-010020	793nm chip	190	10	10	1.85	MM

No.	Product Code	Description	Emitter Width (μm)	Output Power(W)	Operating Current(A)	Operating Voltage(V)	Mode
25	TL-793-015020	793nm chip	220	15	15	1.9	MM
26	TL-793-022020	793nm chip	320	22	22	1.85	MM
27	TL-808-B50020	808nm chip		0.5
28	TL-808-001020	808nm chip	44	1			MM
29	TL-808-002020	808nm chip	68	2			MM
30	TL-808-003020	808nm chip	90	3	3	1.85	MM
31	TL-808-006020	808nm chip	90	6	6	1.85	MM
32	TL-808-010021	808nm chip	190	10	10	1.85	MM
33	TL-808-015020	808nm chip	220	15	15	1.9	MM
34	TL-808-022020	808nm chip	320	22	22	1.85	MM
35	TL-808-025020	808nm chip	400	25	25	1.85	MM
36	TL-808-028020	808nm chip	500	28	28	1.85	MM
37	TL-808-035020	808nm chip	650	35			QCW
38	TL-830-001020	830nm chip	44	1			MM
39	TL-830-002020	830nm chip	40	2	2	1.8	MM
40	TL-830-C25020	830nm chip	40	2.5			MM
41	TL-830-C25021	830nm chip	50	2.5			MM
42	TL-840-140020	840nm chip	300x16	140	39	13.4	QCW
43	TL-840-225020	840nm chip	300x20	225	39	16.5	QCW
44	TL-850-B30020	850nm chip	3	0.3	0.38	1.78	SM
45	TL-850-B60020	850nm chip	3	0.6	0.7	1.8	SM
46	TL-878-015020	878nm chip	190	15			MM
47	TL-878-018020	878nm chip	220	18			MM
48	TL-878-025020	878nm chip	250	25			MM

No.	Product Code	Description	Emitter Width (μm)	Output Power(W)	Operating Current(A)	Operating Voltage(V)	Mode
49	TL-880-010020	880nm chip	190	10	12	1.8	MM
50	TL-880-010020	880nm chip	350	10	10	1.8	MM
51	TL-880-015020	880nm chip	190	15	15	1.7	MM
52	TL-880-018020	880nm chip	190	18			MM
53	TL-880-020020	880nm chip	250	20			MM
54	TL-888-015020	888nm chip	190	15			MM
55	TL-888-018020	888nm chip	220	18			MM
56	TL-888-022020	888nm chip	250	22			MM
57	TL-895-001020	895nm chip		1
58	TL-905-A40020	905nm chip		0.04			SM
59	TL-905-006020	905nm chip	40x2	6	5	2.6	QCW
60	TL-905-020020	905nm chip	50x10	20	6	7.6	QCW
61	TL-905-025020	905nm chip	300x2	25	20	3.8	QCW
62	TL-905-025021	905nm chip	74x10	25	7	6.5	QCW
63	TL-905-025022	905nm chip	75x10	25	7	7	QCW
64	TL-905-035020	905nm chip	75x10	35	10	8.5	QCW
65	TL-905-040020	905nm chip	100x10	40	13	9.1	QCW
66	TL-905-045020	905nm chip	75x16	45	11	10	QCW
67	TL-905-050020	905nm chip	150x10	50	14	7.1	QCW
68	TL-905-055020	905nm chip	100x14	55	13	10.5	QCW
69	TL-905-065020	905nm chip	135x10	65	19	10.2	QCW
70	TL-905-070020	905nm chip	105x14	70	17	12.5	QCW
71	TL-905-075020	905nm chip	300x10	75	22	9.5	QCW
72	TL-905-085020	905nm chip	135x16	85	20	11	QCW

No.	Product Code	Description	Emitter Width (μm)	Output Power(W)	Operating Current(A)	Operating Voltage(V)	Mode
73	TL-905-095020	905nm chip	135x16	95	17	21	QCW
74	TL-905-120020	905nm chip	105x20	120	23	18	QCW
75	TL-905-135020	905nm chip	300x10	135	22	11	QCW
76	TL-905-150020	905nm chip	135x20	150	30	18	QCW
77	TL-905-165020	905nm chip	300x16	165	39	14	QCW
78	TL-905-225020	905nm chip	300x20	225	38	18	QCW
79	TL-905-500020	905nm chip		500	160	11	QCW
80	TL-905-D12020	905nm chip		1200	320	15	QCW
81	TL-915-B50020	915nm chip	28	0.5			MM
82	TL-915-012020	915nm chip	90	12	12	1.75	MM
83	TL-915-020020	915nm chip	150	20	20	1.78	MM
84	TL-915-025020	915nm chip	190	25	25	1.8	MM
85	TL-915-030020	915nm chip	220	30	30	1.75	MM
86	TL-915-035020	915nm chip	300	35	35	1.8	MM
87	TL-915-045020	915nm chip	320	45	45	1.78	MM
88	TL-915-055020	915nm chip	400	55	55	1.66	MM
89	TL-915-065020	915nm chip	500	65	65	1.65	MM
90	TL-940-001020	940nm chip	44	1			MM
91	TL-940-004020	940nm chip	190	4	4	1.55	MM
92	TL-940-010020	940nm chip	96	10	10	1.7	MM
93	TL-940-015020	940nm chip	190	15	15	1.7	MM
94	TL-940-025020	940nm chip	230	25			MM
95	TL-940-045020	940nm chip	320	45			MM
96	TL-976-B50020	976nm chip	28	0.5			MM

No.	Product Code	Description	Emitter Width (μm)	Output Power(W)	Operating Current(A)	Operating Voltage(V)	Mode
97	TL-976-B75020	976nm chip	5	0.75			SM
98	TL-976-012020	976nm chip	90	12	12	1.65	MM
99	TL-976-012021	976nm chip	100	12	12	1.6	MM
100	TL-976-012022	976nm chip	120	12	12	1.6	MM
101	TL-976-018020	976nm chip	150	18	18	1.6	MM
102	TL-976-022020	976nm chip	190	22	22	1.6	MM
103	TL-976-025020	976nm chip	190	25	25	1.57	MM
104	TL-976-025021	976nm chip	220	25	25	1.55	MM
105	TL-976-030020	976nm chip	230	30	30	1.7	MM
106	TL-976-035020	976nm chip	230	35	35	1.8	MM
107	TL-976-035021	976nm chip	290	35	35	1.65	MM
108	TL-976-045020	976nm chip	320	45	45	1.65	MM
109	TL-976-050020	976nm chip	400	50	55	1.55	MM
110	TL-976-055020	976nm chip	400	55	55	1.59	MM
111	TL-976-060020	976nm chip	500	60	65	1.55	MM
112	TL-976-065020	976nm chip	500	65			MM
113	TL-980-B30020	980nm chip	3	0.3	0.4	1.85	SM
114	TL-980-B60020	980nm chip	3	0.6	0.75	1.85	SM
115	TL-1064-B30020	1064nm chip	3	0.3	0.41	1.65	SM
116	TL-1064-B60020	1064nm chip	3	0.6	0.9	1.75	SM
117	TL-1064-B80020	1064nm chip	3.5	0.8	1.0	0.42	SM
118	TL-1064-002020	1064nm chip	90	2	2.5	1.6	MM
119	TL-1064-008020	1064nm chip	90	8	8	1.7	MM
120	TL-1064-015020	1064nm chip	190	15	15	1.6	MM

No.	Product Code	Description	Emitter Width (μm)	Output Power(W)	Operating Current(A)	Operating Voltage(V)	Mode
121	TL-1064-020020	1064nm chip	230	20	20	1.55	MM
122	TL-1064-025020	1064nm chip	340	25	25	1.5	MM
123	TL-1210-004020	1210nm chip	95	4	8	1.7	MM
124	TL-1260-004020	1260nm chip	95	4			MM
125	TL-1273-A10030	1273nm chip		0.01	＜0.1	1.6	DFB
126	TL-1310-A70030	1310nm chip		0.07			DFB
127	TL-1310-003020	1310nm chip	95	3	9	1.4	MM
128	TL-1310-006020	1310nm chip	190	6	14	1.3	MM
129	TL-1470-C15020	1470nm chip	96	1.5	4	1.5	MM
130	TL-1470-C36020	1470nm chip	96	3.6	9	1.5	MM
131	TL-1470-C55020	1470nm chip	190	5.5	15	1.6	MM
132	TL-1470-007020	1470nm chip	190	7			MM
133	TL-1470-008020	1470nm chip	190	8			MM
134	TL-1550-A60030	1550nm chip		0.06	0.25	1.47	DFB
135	TL-1550-A80030	1550nm chip		0.08	0.5	2	DFB
136	TL-1550-B10030	1550nm chip		0.1	0.5	2	DFB
137	TL-1550-B15030	1550nm chip		0.15	0.7	2	DFB
138	TL-1550-B26030	1550nm chip		0.26	1.3	2	DFB
139	TL-1550-B32020	1550nm chip		0.32	1.2	2.2	FP
140	TL-1550-003020	1550nm chip	95	3	8	1.2	MM
141	TL-1550-004020	1550nm chip	96	4	9	1.6	MM
142	TL-1550-005020	1550nm chip	190	5	14	1.2	MM
143	TL-1550-C55020	1550nm chip	190	5.5	15	1.5	MM
144	TL-1550-015020	1550nm chip	96x2	15	30	10	QCW
145	TL-1550-050020	1550nm chip	190x10	50	48	16	QCW
146	TL-1654-A09030	1654nm chip		9mW	＜0.1	2	DFB
147	TL-1710-003020	1710nm chip	95	3	10	1.15	MM
148	TL-1710-005020	1710nm chip	190	5	19	1.3	MM

No.	Product Code	Description	Emitter Width (μm)	Output Power(W)	Operating Current(A)	Operating Voltage(V)	Mode
149	TL-1725-C25020	1725nm chip	96	2.5	9	1.35	MM
150	TL-1726-C17020	1726nm chip	94	1.7			MM
151	TL-1726-002020	1726nm chip	94	2			MM
152	TL-1726-C25020	1726nm chip	190	2.5			MM
153	TL-1726-C35020	1726nm chip	190	3.5			MM
154	TL-1940-001020	1940nm chip	94	1	5	1.13	MM
155	TL-1940-C15020	1940nm chip	190	1.5	9	1.13	MM
156	TL-1940-002020	1940nm chip	190	2	10	1.35	MM
157	TL-1940-C25020	1940nm chip	190	2.5	15	1.25	MM
