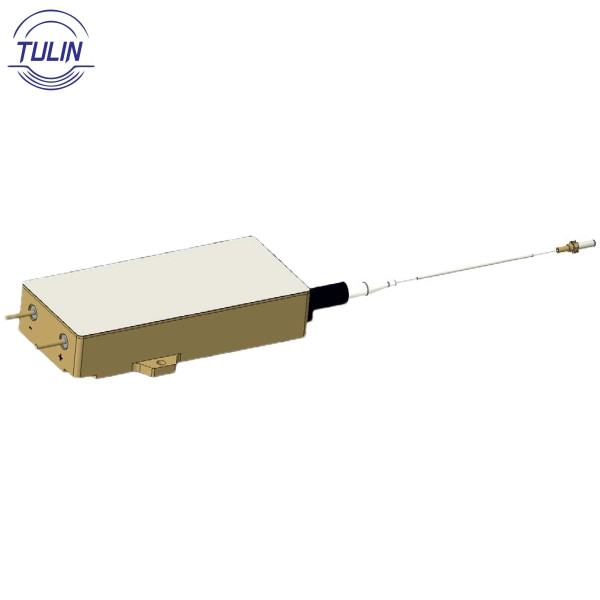

915nm Module
We provide fiber coupled laser diode modules at 915nm with various power options. Featuring high brightness, excellent electro-optical conversion, and exceptional reliability, these modules have been widely adopted in the market and consistently deliver outstanding performance.
| No. | Product Code | Wavelength(nm) | Output Power(W) | Operating Current(A) | Operating Voltage(V) | Core Diameter/Cladding Diameter(μm) | Mode |
| 1 | TL-915-03036E | 915 | 30 | 12 | 4.8 | 105/125 | MM |
| 2 | TL-915-06036E | 915 | 60 | 11 | 10 | 105/125 | MM |
| 3 | TL-915-11036E | 915 | 110 | 16 | 14.5 | 105/125 | MM |
| 4 | TL-915-15036G | 915 | 150 | 200 | MM | ||
| 5 | TL-915-20036F | 915 | 200 | 25 | 16.5 | 135/155 | MM |
| 6 | TL-915-22036F | 915 | 220 | 25 | 16.5 | 135/155 | MM |
| 7 | TL-915-23036F | 915 | 230 | 20 | 23 | 135/155 | MM |
| 8 | TL-915-23036G | 915 | 230 | 20 | 21 | 200/220 | MM |
| 9 | TL-915-27036F | 915 | 270 | 17 | 135/155 | MM | |
| 10 | TL-915-30036F | 915 | 300 | 18 | 29 | 135 | MM |
| 11 | TL-915-32036G | 915 | 320 | 25 | 27.5 | 200/220 | MM |
| 12 | TL-915-32036H | 915 | 320 | 32 | 21 | 220/242 | MM |
| 13 | TL-915-35036F | 915 | 350 | 23 | 30.5 | 135/155 | MM |
| 14 | TL-915-35036H | 915 | 350 | 32 | 21 | 220/242 | MM |
| 15 | TL-915-37036G | 915 | 370 | 26 | 28 | 200/220 | MM |
| 16 | TL-915-38036F | 915 | 380 | 23 | 29.5 | 135/155 | MM |
| 17 | TL-915-42036G | 915 | 420 | 27 | 28.5 | 200/220 | MM |
| 18 | TL-915-45036G | 915 | 450 | 28 | 30.5 | 200/220 | MM |
| 19 | TL-915-45036H | 915 | 450 | 33 | 25.5 | 220/242 | MM |
| 20 | TL-915-50036F | 915 | 500 | 30 | 32.5 | 135/155 | MM |
| 21 | TL-915-50036G | 915 | 500 | 25 | 38 | 200 | MM |
| 22 | TL-915-50036H | 915 | 500 | 35 | 31.5 | 220/242 | MM |
| 23 | TL-915-56036G | 915 | 560 | 28 | 44.5 | 200/220 | MM |
| 24 | TL-915-60036G | 915 | 600 | 27 | 43 | 200/220 | MM |
| 25 | TL-915-65036H | 915 | 650 | 35 | 55 | 220/242 | MM |
| 26 | TL-915-75036H | 915 | 750 | 35 | 45 | 220/242 | MM |
| 27 | TL-915-85036H | 915 | 850 | 35 | 52 | 220/242 | MM |
| 28 | TL-915-90036H | 915 | 900 | 45 | 220/242 | MM | |
| 29 | TL-915-D1036H | 915 | 1000 | 45 | 220/242 | MM | |
| 30 | TL-915-D1236H | 915 | 1200 | 45 | 220/242 | MM | |
| 31 | TL-915-D1336M | 915 | 1300 | 42 | 64 | 300 | MM |
