SOA COC

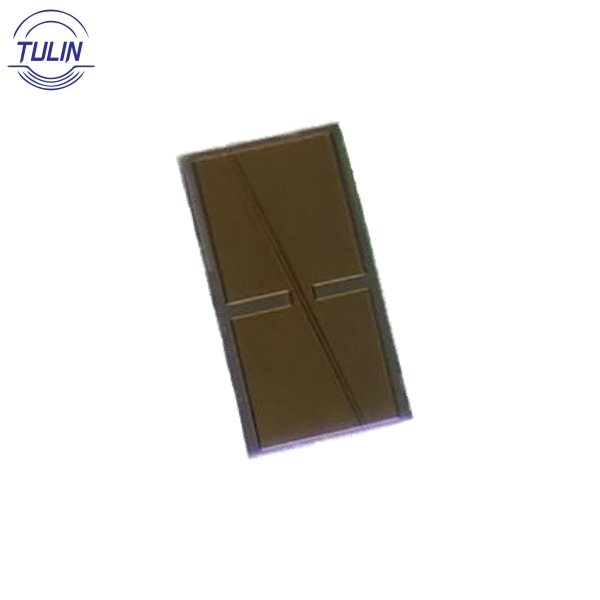

We offer multi-wavelength Semiconductor Optical Amplifier (SOA) chips in Chip-on-Carrier (COC) form, categorized into high-sensitivity and high-power types. We can provide SOA chips, too. These products support rapid customization, with short lead times and fast delivery.
| No. | Product Code | Centre Wavelength (nm) | -3dB Spectral Width (nm) | Saturated Optical Power (dBm) | Small-Signal Gain (dB) |
| 1 | TL-850-SA1400 | 810~870 | ＞7 | 15~22 | |
| 2 | TL-1050-SA1400 | 1010~1080 | ＞7 | 15~22 | |
| 3 | TL-1260-SA1400 | 1260~1330 | ＞7 | 15~22 | |
| 4 | TL-1270-SA1400 | 1270 | 60 | 10 | 18 |
| 5 | TL-1290-SA1400 | 1290 | 60 | 10 | 18 |
| 6 | TL-1300-SA1400 | 1300 | 60 | 12 | 20 |
| 7 | TL-1310-SA1400 | 1300 | 60 | 16 | 25 |
| 8 | TL-1480-SA1400 | 1480~1630 | ＞7 | 15~22 | |
| 9 | TL-1515-SA1400 | 1515 | 50 | 15 | 25 |
| 10 | TL-1550-SA1400 | 1515 | 55 | ＞13 | ＞25 |
| 11 | TL-1310-SA1401 | 1310 | 60 | 10 | 18 |
| 12 | TL-1310-SA1402 | 1300 | 60 | 11 | 22 |
