6xxnm Module

Wavelength 635nm~660nm
Detail

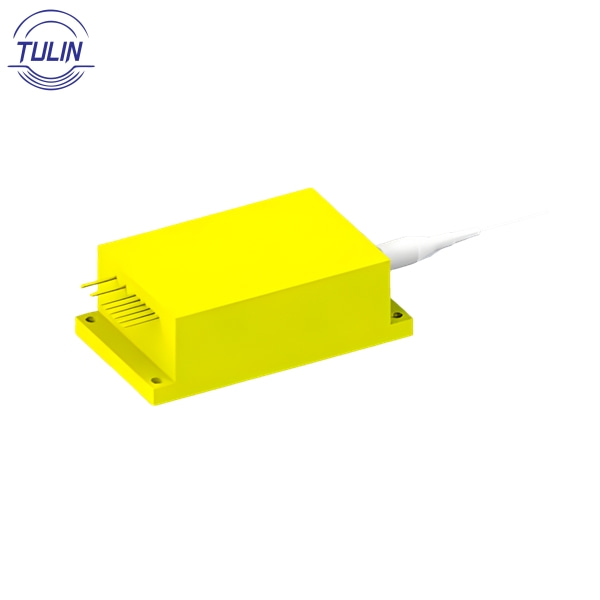

High-power fiber-coupled laser modules integrate semiconductor laser chips, precision fiber-coupling optics, thermal management, and electrical interfaces into a compact, ready-to-use package. They provide stable fiber output, high reliability, and easy system integration for demanding industrial and scientific applications.


6xxnm fiber-coupled laser modules are widely used in scientific research, medical equipment, laser illumination, laser display, and other applications requiring high-power red laser sources. We offer high-power 638nm fiber-coupled laser modules with output power up to 600W, delivering exceptional brightness, excellent beam uniformity, and outstanding optical performance for demanding industrial and research applications.


Browse the products below to find the module that best fits your application. If you need detailed specifications, pricing, or assistance in selecting the appropriate configuration, please contact our sales and technical team.


No.
Product Code
Wavelength
(nm)
Output Power
(W)
Operating Current (A)
Operating Voltage (V)
Core Diameter (μm)
Mode
1
TL-635-C4536E
635
4.5
0.9
17
105
MM
2
TL-638-B2636A
638
0.26
0.65
2.3
50
MM
3
TL-638-B5036G (Pluggable fiber output)
638
0.5
0.9
2.3
200
MM
4
TL-638-00136E
638
1
1.4
2.4
105
MM
5
TL-638-01036I
638
10
1.3x2
16.2x2
400
MM
6
TL-640-00436E
640
4


105
MM
7
TL-640-00536E
640
5


105
MM
8
TL-640-02036E
640
20
1.4
48
105
MM
9
TL-638-02036I
638
20
<2
<45
400
MM
10
TL-638-04036I
638
40
<3.5
<45
400
MM
11
TL-640-04036G
640
40


200
MM
12
TL-638-06036G
638
60
<1.8
<72x2
200
MM
13
TL-640-06036G
640
60


200
MM
14
TL-638-10036I
638
100
<2.8
<72x2
400
MM
15
TL-640-10036I
640
100


400
MM
16
TL-638-20036J
638
200


600
MM
17
TL-638-60036L
638
600


1000
MM
18
TL-645-00136E
645
1
1.4
2.4
105
MM
19
TL-650-A0536E
650
5mW
0.03
2.6
105
MM
20
TL-650-A2036E
650
0.02
0.15
2.6
105
MM
21
TL-650-B1036E
650
0.1
0.2
2.6
105
MM
22
TL-660-A4036T
660
0.04
0.18
2.3
4/9
MM
23
TL-660-00236G
660
2
1.2
6.3
200
MM


Note: Unless otherwise specified, all products are standard fiber-coupled laser modules. The package structure, output interface, fiber core diameter, and other key parameters can be customized according to specific application requirements.
