TO9

Wavelength 405nm~2000nm
Detail

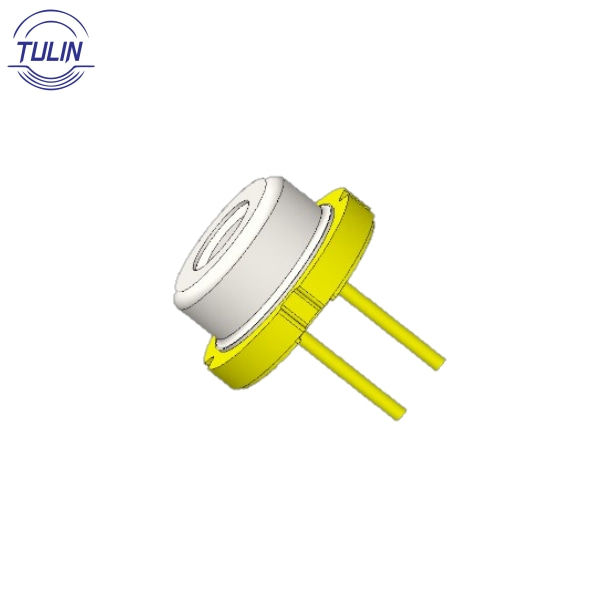

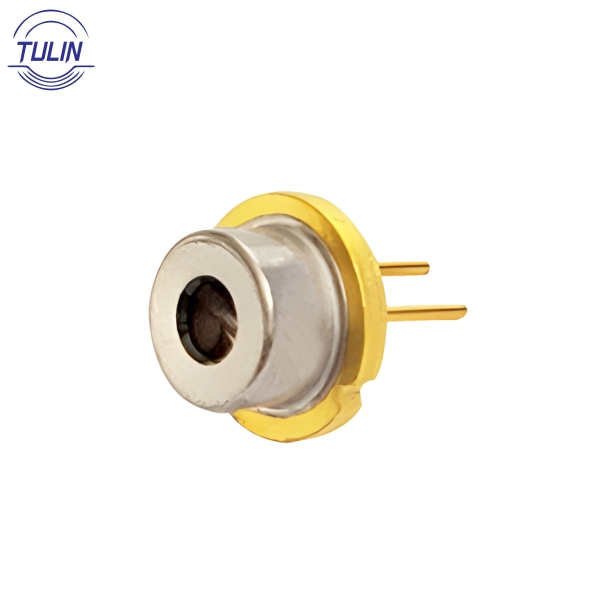

TO9 laser diodes are semiconductor laser devices packaged in the industry-standard TO9 metal can package. Compared with TO56 packages, TO9 packages offer improved thermal dissipation and are better suited for higher-power laser applications. They are widely used in industrial laser systems, medical equipment, sensing, scientific research, and OEM applications.


Our TO9 laser diodes are available in a wide range of wavelengths to meet different application requirements. All products listed below are FP (Fabry-Perot) laser diodes.


Browse the TO9 laser diodes below and select the products that match your requirements. Contact us by email to receive detailed datasheets, pricing, and technical support.


No.
Product Code
Description
Wavelength
(nm)
Output
Power (W)
Operating
Current (A)
Operating
Voltage (V)
Mode
1
TL-405-C12240
405nm TO9
400~404
1.2
＜1
4.3
MM
2
TL-440-C35240
440nm TO9
430~450
3.5
＜2.5
2
MM
3
TL-440-C55240
440nm TO9
430~450
5.5
＜4
4.3
MM, FAC/fiber compression version available
4
TL-440-007240
440nm TO9
430~450
7
＜4
4.3
MM
5
TL-440-006240
440nm TO9
440
6.0
3.7
4.1
MM
6
TL-450-005240
450nm TO9
450
5.0
3.0
4.3
MM
7
TL-455-C55240
455nm TO9
455
5.5
3.3
4.1
MM
8
TL-460-C35240
460nm TO9
450~470
3.5
2.5
2
MM
9
TL-460-C55240
460nm TO9
450~470
5.5
＜4
4.3
MM, FAC/fiber compression version available
10
TL-510-C12240
510nm TO9
510
1.2
　
4.8
MM
11
TL-525-C16240
525nm TO9
525
1.6
1.9
4
MM
12
TL-638-C05240
638nm TO9
638
0.5
0.66
2.2
MM
13
TL-638-001240
638nm TO9
638
1
1.5
2.1
MM
14
TL-638-C12240
638nm TO9
638
1.2
1.3
2.3
MM
15
TL-638-C21240
638nm TO9
75*2
2.1
2.6
2.1
MM
16
TL-640-001240
640nm TO9
640
1
1.1
2.3
MM
17
TL-640-002240
640nm TO9
640
2
2.35
2.3
MM
18
TL-641-C25240
641nm TO9
75*2
2.5
2.7
2.1
MM
19
TL-645-C12240
645nm TO9
645
1.2
1.4
2.4
MM
20
TL-665-002240
665nm TO9
665
2
2.1
2.1
MM
21
TL-690-001240
690nm TO9
690
2
1.8
2.2
MM
22
TL-808-001240
808nm TO9
808
1
1.2
2.0
MM
23
TL-808-003240
808nm TO9
808
3
2.5
1.8
MM
24
TL-808-005240
808nm TO9
808
5
5
2.1
MM




No.
Product Code
Description
Wavelength
(nm)
Output
Power (W)
Operating
Current (A)
Operating
Voltage (V)
Mode
25
TL-830-001240
830nm TO9
830
1
1.28
1.8
MM
26
TL-840-140240
840nm TO9
300x16
140
39
13.4
QCW
27
TL-840-225240
840nm TO9
300x20
225
39
16.5
QCW
28
TL-850-002240
850nm TO9
850
2
　
　
MM
29
TL-905-225240
905nm TO9
300x20
225
38
18
QCW
30
TL-980-001240
980nm TO9
980
1
1.2
2.0
MM
31
TL-980-003240
980nm TO9
980
3
3
2.5
MM
32
TL-940-004240
940nm TO9
940
4
3.8
1.9
MM
33
TL-940-005240
940nm TO9
940
5
5
1.6
MM
34
TL-940-006240
940nm TO9
940
6
5
2.3
MM
35
TL-1064-002240
1064nm TO9
1064
2
2.1
2.4
MM
36
TL-1064-003240
1064nm TO9
1064
3
3
1.4
MM
37
TL-1064-005240
1064nm TO9
1064
5
5
1.6
MM
38
TL-1470-002240
1470nm TO9
1470
2
5
1.8
MM
39
TL-1470-C36240
1470nm TO9
1470
3.6
9
1.5
MM
40
TL-1470-005240
1470nm TO9
1470
5
15
1.4
MM
41
TL-1550-C36240
1550nm TO9
1550
3.6
9
1.45
MM
42
TL-1550-015240
1550nm TO9
96x2
15
30
10
QCW
43
TL-1550-050240
1550nm TO9
1550
50
55
23
QCW
44
TL-1726-C25240
1726nm TO9
96
2.5
9
1.35
MM
45
TL-1726-004240
1726nm TO9
190
4
14
1.27
MM
46
TL-1940-C15240
1940nm TO9
190
1.5
9
1.13
MM
47
TL-1940-C25240
1940nm TO9
190
2.5
15
1.25
MM
48
TL-2000-C25240
2000nm TO9
190
2.5
13
1.07
MM
